11+ 100 Watt Inverter Circuit. The proposed simple 100 watt inverter circuit disign was published quite a long time ago in one of the elektor electronics magazines and according to me this circuit is one of the best inverter designs you can get. Here is a 100 watt inverter circuit using a minimum number of components.

100W-inverter-circuit from envirementalb.com

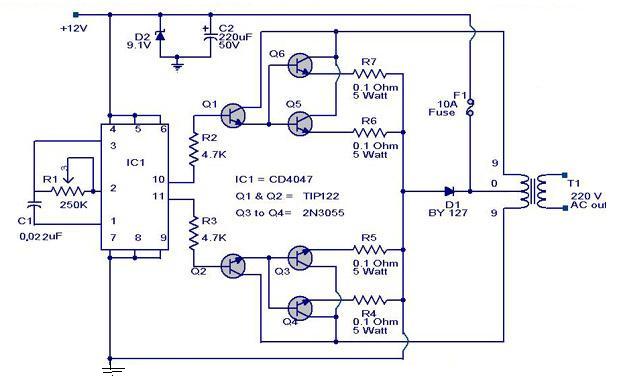

The top countries of suppliers are china, india, from. This chip here acts as an astable multivibrator. Here is a 100 watt inverter circuit using minimum number of components.i think it is quite difficult to make a decent one like this with further less components.here we use cd 4047 ic from texas instruments for generating the 100 hz pulses and four 2n3055 transistors for driving the load.

You can use bulbs, cfl, mobile charger, laptop charger, etc.

11+ 100 Watt Inverter Circuit. Are amplified by four 2n3055 transistors (two transistors for each half cycle) to drive the inverter transformer. 100 watt inverter 12 volt to 220 volt ac. I want to make 12v dc to 240v ac,500 watts inverter.plz send the message which requirements i need and send me circuits and parts. This chip here acts as an astable multivibrator.
