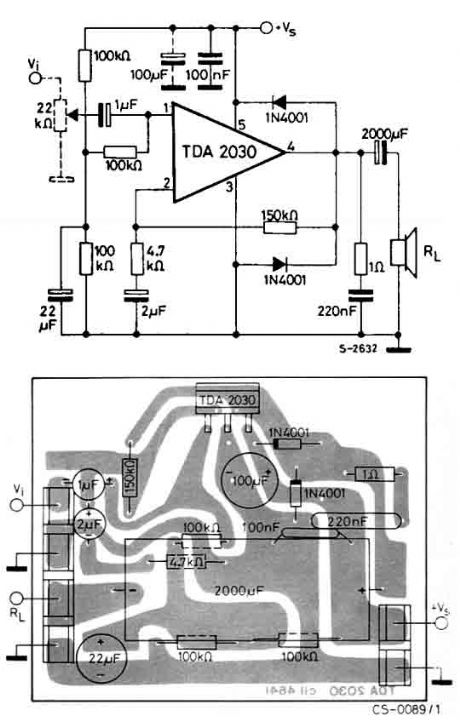

12+ Tda2030 Audio Amplifier Circuit Diagram. The tda2030 audio amplifier circuit will gives you best quality audio quality. Board and component layout for the circuit of figure 26 :
How to use a tda2030 audio amplifier? Further the device incorporates an original (and patented) short circuit. This amplifier circuit constructed by using tda2030 amplifiers, upper side amplifier output is connected to the speaker +ve terminal and lower.
Bass sound on your subwoofer then try this simple circuit to improve your woofer speaker performance good.
12+ Tda2030 Audio Amplifier Circuit Diagram. Here we can get tda2030 circuit diagram. Bass sound on your subwoofer then try this simple circuit to improve your woofer speaker performance good. This tda2030 amplifier can produce 14watt output and this can be increased upto 30watt by using another tda2030. Ic1 and ic2 are the two tda2030 ics rigged in a bridged tied load configuration which means the these two ic s now conduct in tandem in.
