14+ Lm386 Audio Amplifier Circuit Diagram. It can be left open or can be grounded using a capacitor for stability. Which means its performance is step 3:
IC LM386: Pin Configuration, Circuit Diagram, Features and … from www.elprocus.com

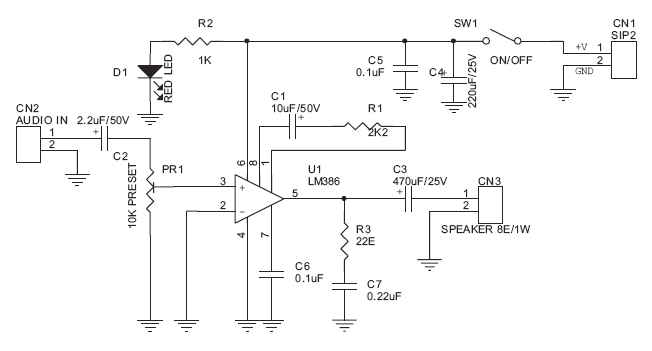

This lm386 audio amplifier circuit can be used as small mic and loudspeaker system for a small space like a room. Which means its performance is step 3: Thus, in this tutorial, we will go over all the aspects of this chip including the pinouts of its terminals and how to connect it to a circuit.
Lm386 audio amplifier circuit diagram and working.

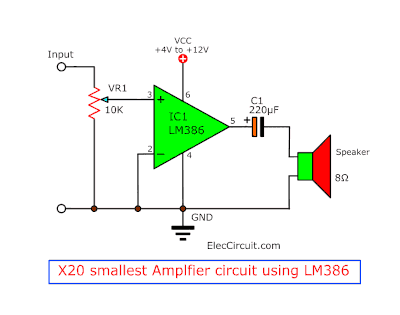

14+ Lm386 Audio Amplifier Circuit Diagram. The voltage amplifier stage (vas): How to use the popular lm386 class ab audio amplifier ic to build a simple mono 1 watt audio amplifier. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200. It's widely used, very popular.
